4000K
Stainless Steel / Cool White
EPO-RCW-01
2700K
Stainless Steel / Warm White
EPO-RWW-01
360°
LED CEILING & CABINET LIGHTING SYSTEMS

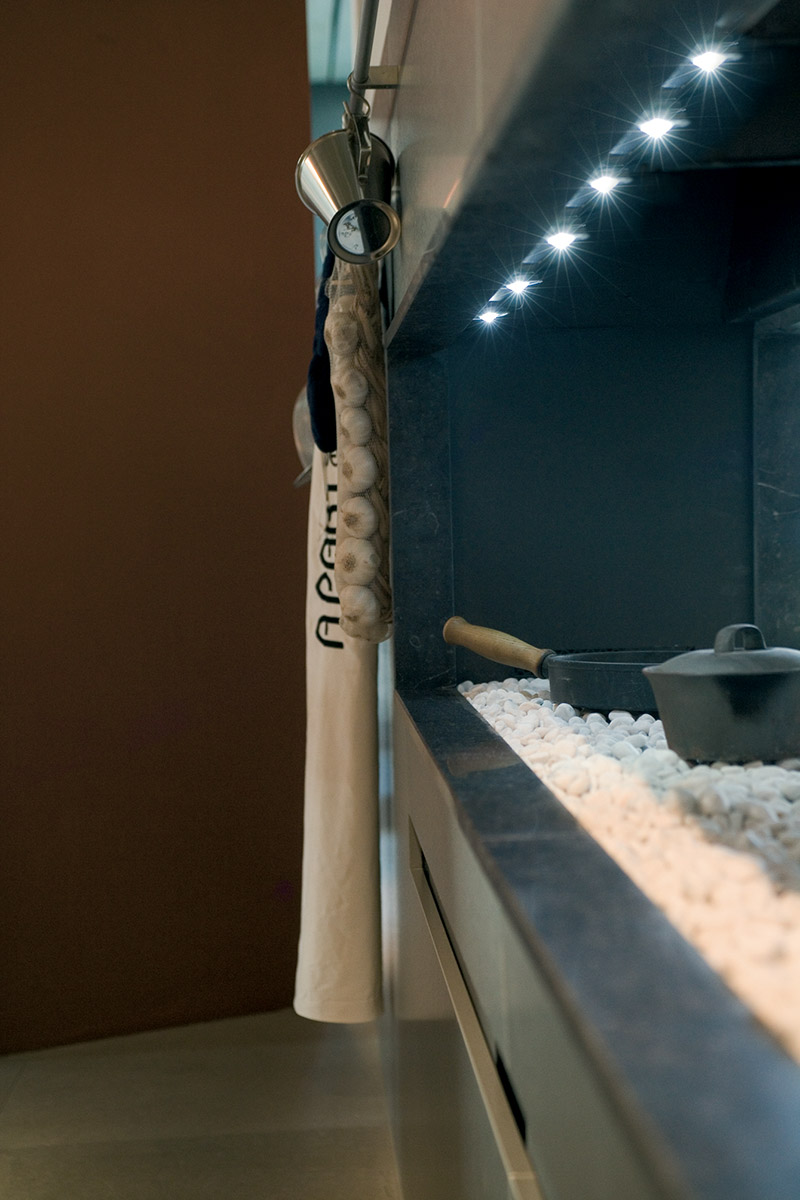

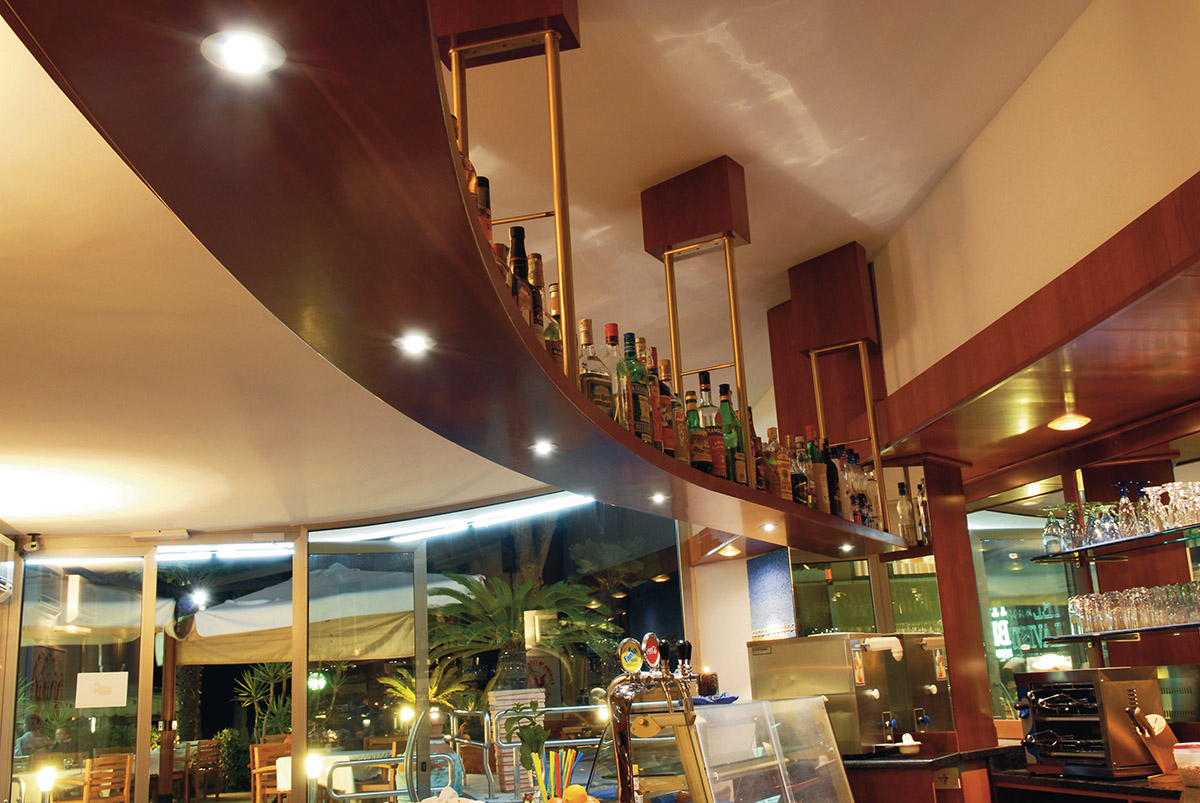

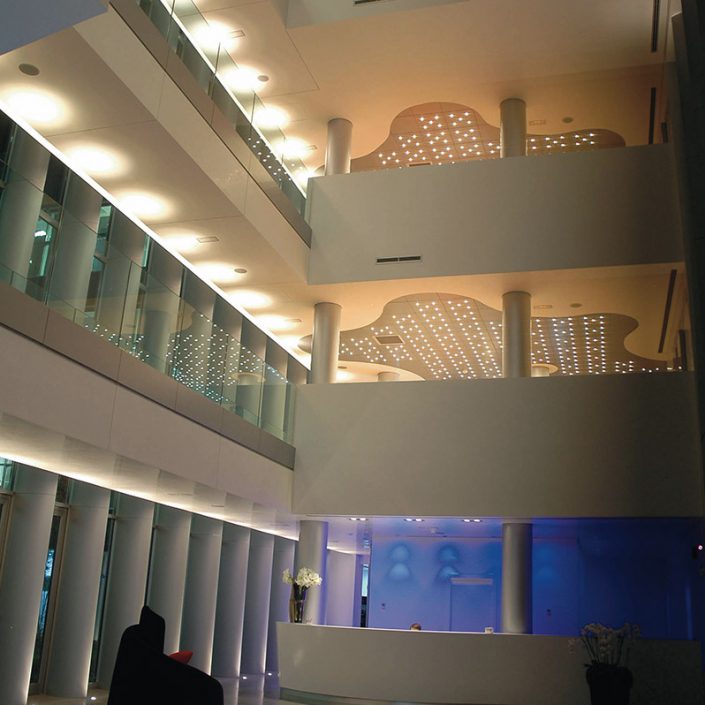

Eyeleds® PowerEYE 360. Due to its low-profile housing, the Eyeleds® PowerEYE 360 can be installed just about anywhere. The Eyeleds® PowerEYE 360 is ideally suited for the use in ceilings, under kitchen cabinets, display cases, book cases, recessed cubicles and more.
APPLICATIONS:
Ceilings
Kitchen cabinets
Book & display cases
Baseboards
Stringers & risers
Wainscoting, etc.
PRODUCT CONFIGURATION & DIMENSIONS
Eyeleds® PowerEYE 360 are single, linkable LED units, with two 80 cm cables and pre-attached male and female IP67 plug connectors.
FEATURES & BENEFITS
Powerful & functional
Powerful, functional light with a wide range of applications
Energy saving low power
Energy saving low power consumption light source: 12V DC, 1.5W
Long lifespan
Extremely long lifespan of up to 50,000 hours
Unique lens design
Unique lens design direct the light to where it is needed
Cool to touch
Cool to touch, the temperature of the surface will not exceed 55ºC
Water-resistant
Dust-proof and water-resistant fixture (IP67 rating)
Stainless steel
Solid housing construction made of IN)X 304 stainless steel
SPECIFICATIONS
Lumen output:42 lm (PowerEYE 360 CW)
40 lm (PowerEYE 360 WW)
Power consumption: 1W
Voltage: 12V DC
Rated life: Up to 100.000 Hours
Materials: Lens: PC | Fixture: Stainless Steel 316
Walkover pressure: Max 285 kg
Surface temperature: Max 34°C
Environment: IP67 / Indoor Use Only
Warranty: 5 Years Limited
Standards: CE
DOWNLOADS/MANUALS
– Manual POWEREYE
ACCESSORIES
Built-In Driver EIA-10000
12W / 12V DC
220-240V
max. 18 pcs of PowerEYE
L 51/B 51/H 24 mm
Built-In Driver EIA-15000
20W / 12V DC
220-240V
max. 18 pcs of PowerEYE
Plug-In Driver EIA-11000
5W / 12V DC
220-240V
max. 4 pcs of PowerEYE
T-Splitter EIA-20000
Extension Cable
EIA-30002 – 100 cm (1.6”)
EIA-30003 – 300cm (3.2”)
EIA-30004 – 600cm (9.8”)
End Stop EIA-40000
