4500K
Stainless Steel / Cool White
EFL-RCW-03 (string of 3 lights)
EFL-RCW-05 (String of 5 lights)
3000K
Stainless Steel / Warm White
EFL-RWW-03 (string of 3 lights)
EFL-RWW-05 (String of 5 lights)
FLOORLEDS LIGHTING SYSTEMS

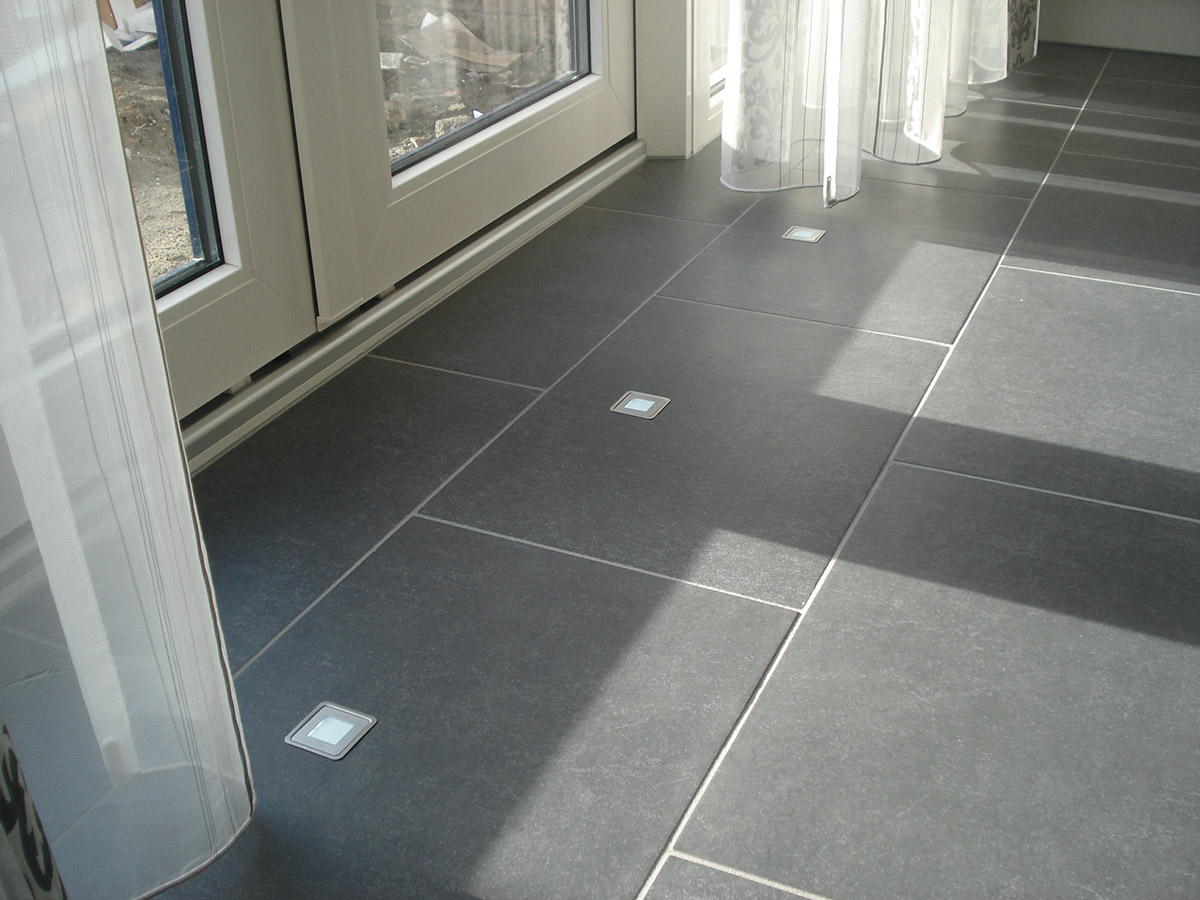

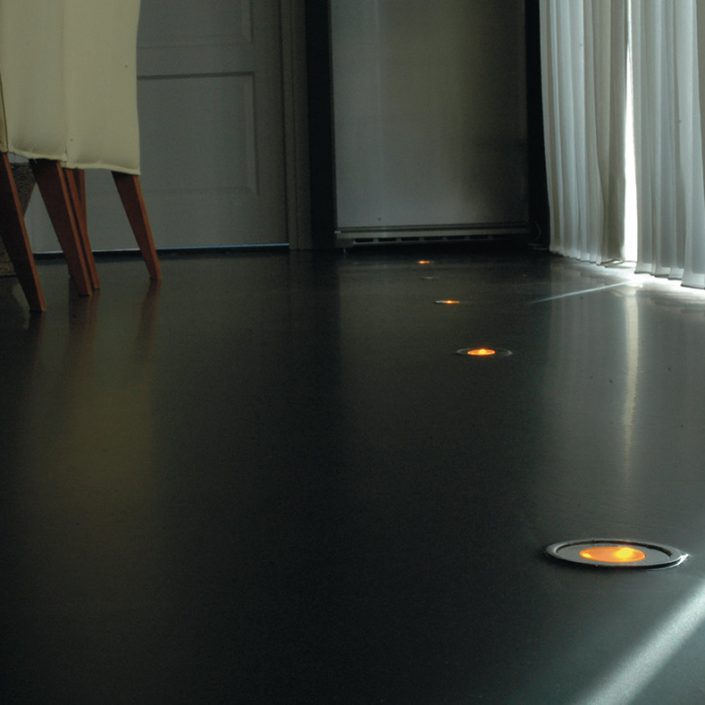

Eyeleds® Floorleds is an easy to install, built-in walk-over lighting innovation based on LED technology. Floorleds are one of the first low profile, permanently installed, recessed residential and commercial LED Floor lighting systems of its kind.
Floorleds provide ambient, orientation, marker and safety lighting in carpet, hardwood, laminate, (natural) stone and quartz flooring applications.
Floorleds are perfect for commercial applications such as restaurants, retail establishments, entertainment facilities, sport facilities, theatres, casinos or hotels. Floorleds function wonderfully as guide, accent or night-lights in stairways, lobbies, offices, conference rooms, walkways, elevators or at entrances or exits of buildings. The solid Eyeleds® construction is designed to withstand heavy use; walking or even driving over the lights is not a problem.
APPLICATIONS:
Natural stone & tile
Hardwood & laminate
Carpet (tiles)
(Entrance) Matting
Quartz carpet
PRODUCT CONFIGURATION & DIMENSIONS
Floorleds are available in sets of 3 or 5 LED Units
FEATURES & BENEFITS
Easily installed
Revolutionary design allows Floorleds to be easily installed by flooring specialists
Floor thickness only 7 mm
Floorleds are recess mounted fixtures that require a minimum floor thickness of only 7 mm
Long lifespan
Long lifespan of up to 100.000 hours which equals 34 years, if turned on 8 hours per day
Energy-efficient
Energy-efficient, solid state light source: only 0.3W power consumption
Solid construction
Solid construction with UV resistant polycarbonate lens can withstand 285 kg of walkover pressure
Cool to the touch
The lights are cool to the touch, the lighting surface won’t get hotter than 34°C
Available in…
Floorleds are available in round shapes and LED colors warm white and cool white
SPECIFICATIONS
Lumen output: 1.6 lm
Power consumption: 0.3W, 25 mA
Voltage: 12V DC
Rated life: Up to 100.000 Hours
Materials: Lens: PC | Fixture: Stainless Steel 316
Walkover pressure: Max 285 kg
Surface temperature: Max 34°C
Environment: IP67 / Indoor Use Only
Warranty: 5 Years Limited
Standards: CE
DOWNLOADS/MANUALS
– Manual FLOORLEDS
ACCESSORIES
Built-In Driver EIA-10000
Built-In Driver 12W / 12V DC
220-240V
max. 60 pcs of Floorleds
Built-In Driver EIA-15000
Built-In Driver 20W / 12V DC
220-240V
max. 60 pcs of Floorleds
L 51/B 51/H 24 mm
Plug-In Driver EIA-11000
5W / 12V DC
220-240V
max. 15 pcs of Floorleds
On/Off + Dimmer incl. RC EIA 12000
T-Splitter EIA-20000
Extension Cable
EIA-30002 – 100 cm (1.6”)
EIA-30003 – 300cm (3.2”)
EIA-30004 – 600cm (9.8”)
Clamp Ring (carpet) EIA- 60000
End Stop EIA-40000
